1. Requirement
In modern manufacturing and logistics, automated pallet labeling and identification have become key to achieving digital factory traceability.
Enterprises need an intelligent print-and-apply system that can maintain stable, synchronized output on automated palletizing lines — enabling production tracking, batch management, and warehouse data integration.
Traditional labeling still relies heavily on manual operation, leading to inefficiency, misplacement, and inconsistent barcode readability.
To ensure that each pallet can be scanned from any direction, all four sides must applied same labels.
Conventional solution require four separate labeling machines, which drives up costs and complicates coordination and maintenance.
Customer therefore turned to COTAO for a more efficient, automated 4 side labeling solution.
2. Solution

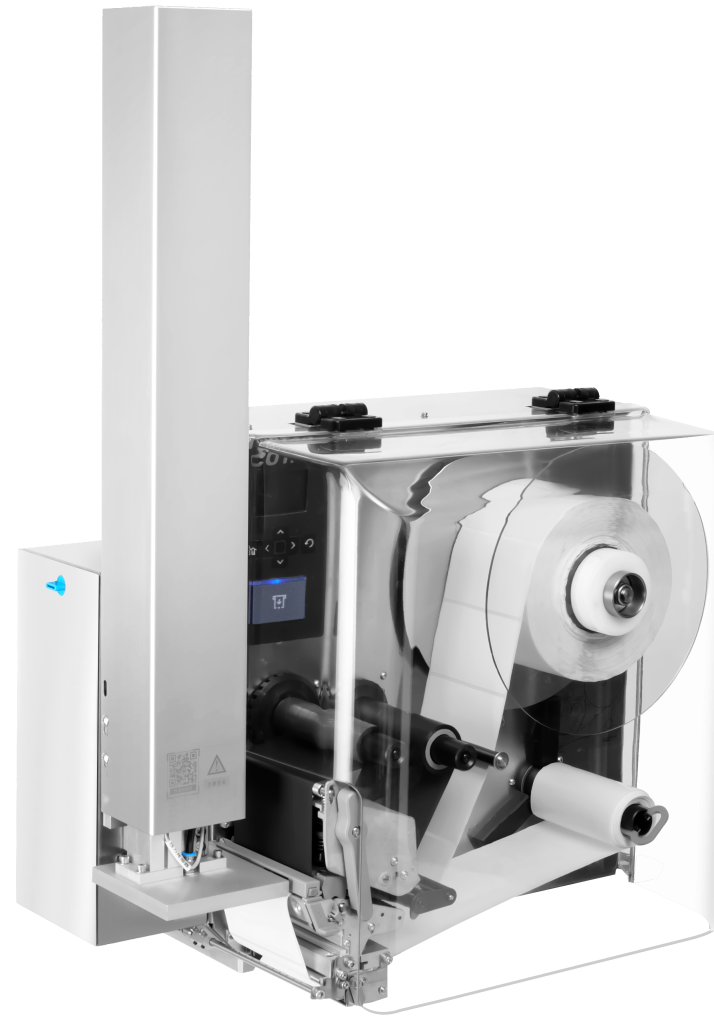

COTAO implemented a H400A High Printer Applicator combined with a rotating pallet platform to enable four side horizontal labeling of pallets and stacked loads.
Equipped with a 400 mm valid stroke length air tamp-blow applicator, it ensures that each label is accurately applied and securely attached to the target surface.
The labeling cycle per side is less than 3 seconds, with an output capacity of up to 60 pallets per hour.
The H400A features an industrial-grade 300 dpi thermal transfer print engine, supporting print width up to 105.7 mm and label length up to 300 mm.
Standardized remote I/O interfaces allow communication via PLC, serial port, and TCP/IP socket, compatible with ZPL commands and image printing.
Through COTAO OPEXE PRINTING software, label data is automatically received, distributed, and executed in real time — achieving full closed-loop automation from data input to physical labeling output.
Operators can remotely configure, debug, and monitor machines, ensuring seamless system integration.
3. Result
With the COTAO 4 Side Pallet Labeling System, customers achieve:
- 4 side print-and-apply labeling in one automated sequence
- Zero labeling errors across 4 labels
- Sharp, high-resolution barcode printing
- ±1 mm labeling tolerance
- Over 300% efficiency improvement
- 60% reduction in manual labor
- Full traceability and real-time data upload to ERP/MES/WMS systems
Thanks to COTAO’s robust labeling architecture, high-quality print performance, and perfect synchronization with industrial controller, every pallet is automatically labeled and traceable — with each side’s label precisely readable.Compliant with ISO manufacturing standards, the COTAO 4 side pallet labeling system supports 24/7 industrial operation, meeting the needs of intelligent manufacturing, packaging and shipping.
It bridges digital data and physical labeling, transforming manual packaging into smart automation — where every label becomes the starting point of supply chain transparency and digital production.
